Machine Run Smoothly With Low Noise For Passenger Elevator Parts
380V Mechanical Gearless Traction Machine Motor Passenger Lift
Parts
SN-WYT-T series outer rotor PMS machine is Bluelight's most popular
product. After 10 years of continuous improvement, this series
product
has high quality standard, with superior performance, and can cover
wide range of elevator application. It is your first choice for
high perfor- mance elevator.
Parameter of Traction Machine
| Voltage : | AC380V |
| Roping: | 2:1 |
| Wrap : | Single |
| Capacity: | 450kg ~ 2500kg |
| Speed : | 0.5m/s ~ 3.0m/s |
| Protection Grade : | IP41 |
| Ins. Class: | F |
| Traction machine pole: | 30 |
| Stars per hour: | 240 |
| Rating: |
S5-40% |
Features
Optimized mechanical structure design, high shaft load, high
operating safety factor;
High eficiency, high torque density design and optimized pole slot
coordination;
Machine run smoothly, with low noise & small vibration;
This series covers wide range of elevator speed & capacity.
Use block type armless brake, it has fast response time & high
reliability.

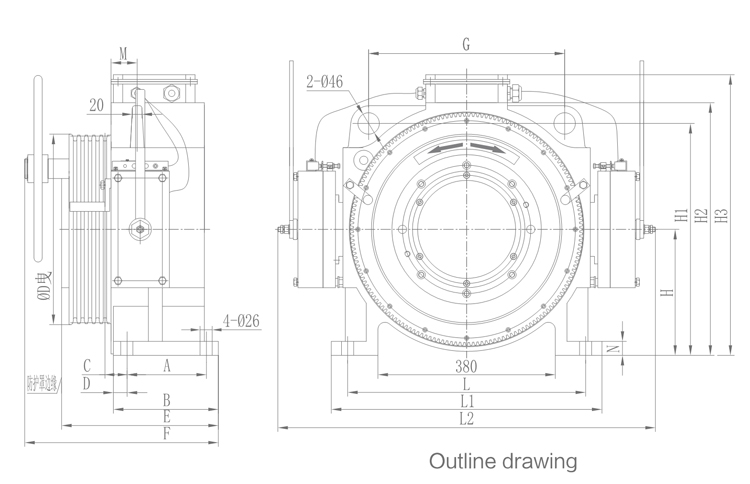

Outline drawing
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements.
Configuration is not only for wire rope and rated load, but also
considered the size of the traction, as a result, the tensile
strength of wire rope is greater than the weight of the lift. The
safety factor is equipped with more than four wire rope. So it
won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator
running?
If it occurs, the elevator will automatically stop due to the
electrical and mechanical safety device. In case of power
failure,elevator brakes will automatically taken. In addition, the
power supply departments such as planned outage, prior notice are
also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of
elevator will automatically restart without any danger. With anti
clamping switch, once the gate touched, this switching action make
the elevator unable to be closed and even reopened. In addition,
closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the
(tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily
proportional to the operation complexity. Therefore, escalators
designed by us apply an integrated structure, so that the equipment
is more precise and more efficient and allows easier and more
convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
