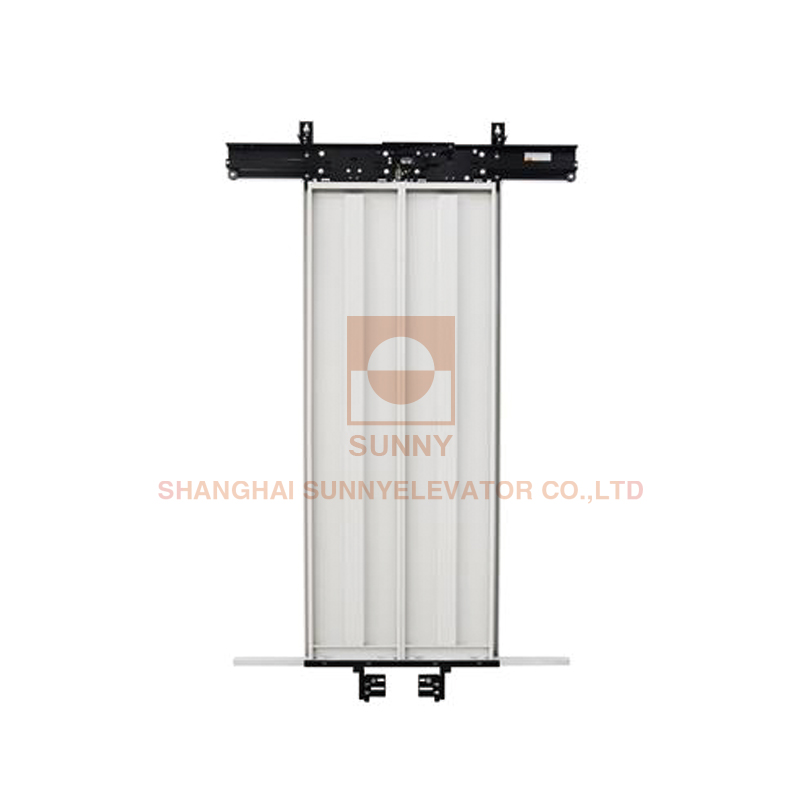

Wittur Landing Lift Door Operator Core Series For Passenger Elevator

Core is a new global door platform for low rise application, already available with GB7588:2003+XG1:2016 & EN81-20/50 certification,etc.

SAFETY
Anti-dropping hooks on the door panel for sill (patented) and back of truck

PERFORMANCE
Bearings mounted on all truck, synchronisation and counter rollers
Arc-shaped, double rail guiding profile
High-performance PU landing lock rollers

RELIABILITY
Trapezoidal rail support increases radial force resistanc
Black electrophoresis treatment for all key parts in the landing door hanger

EASY INSTALLATION
3D adjustable interface to panels
Light weight and reduced number of parts for fast installation
Integrated reclosing device
Single adjustment for lock rollers
Asymmetric bottom shoes
Hook for mechanism

EASY MAINTENANCE
Most components are assembled with screws and replaceable including brackets on side frames
All components are easily accessible

Certifications

GB7588:2003+XG1:2016
EN81-20/50
CCC for electrical components
Fulfillment of CTE certificate
Fulfillment of CE certificate

PRODUCT PARAMETERS & RANGE

Door Type	C2
Sill Depth	40 mm
Side Frame Dim.	50 mm × 40 mm
Top Frame Dim.	50 mm
Options	Grout Guard
Sill Load	400 Kg
Lift Speed	up to 2.5 m/s

CO mm	700	800	900	1000
CH mm	2000-2100

CO = Clear Opening
CH = Clear Height
